ngraph::descriptor::Input Class Reference

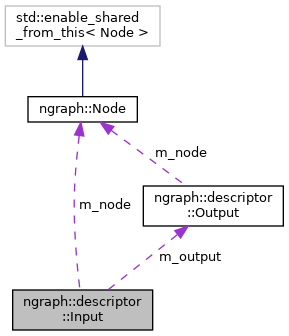

Collaboration diagram for ngraph::descriptor::Input:

Public Member Functions
	Input (Node *node, size_t index, Output &output)
	Input (Node *node, size_t index)
	Create an Input that is not connected to an output. More...
std::shared_ptr< Node >	get_node () const
Node *	get_raw_pointer_node () const
size_t	get_index () const
const Output &	get_output () const
Output &	get_output ()
bool	has_output () const
const Tensor &	get_tensor () const
Tensor &	get_tensor ()
void	replace_output (std::shared_ptr< Node > node, size_t i)
	Replace the current output that supplies a value for this input with output i of node.
void	replace_output (Output &output)
	Replace the current output that supplies a value for this input with output.
void	remove_output ()
	Remove the output from this input. The node will not be valid until another output is supplied.
bool	get_is_relevant_to_shape () const
bool	get_is_relevant_to_value () const
const Shape &	get_shape () const
const PartialShape &	get_partial_shape () const
const element::Type &	get_element_type () const
	Input (const Input &)=default
	Input (Input &&)=default
Input &	operator= (const Input &)=default

Protected Member Functions
std::shared_ptr< const Tensor >	get_tensor_ptr () const
std::shared_ptr< Tensor >	get_tensor_ptr ()

Protected Attributes
std::shared_ptr< Node >	m_src_node
Node *	m_node
size_t	m_index
Output *	m_output

Friends
class	ngraph::Node

Constructor & Destructor Documentation

Input() [1/2]

ngraph::descriptor::Input::Input	(	Node *	node,
		size_t	index,
		Output &	output
	)

Parameters

node	The node that owns this input
index	The position of this this tensor in all input tensors
output	The output that supplies a value for this input

Input() [2/2]

ngraph::descriptor::Input::Input	(	Node *	node,
		size_t	index
	)

Create an Input that is not connected to an output.

Parameters

node	The node that owns this input
index	The position of this this tensor in all input tensors

Member Function Documentation

get_element_type()

const element::Type& ngraph::descriptor::Input::get_element_type

(

)

const

Returns

the element type of the connected output

get_index()

size_t ngraph::descriptor::Input::get_index ( ) const

inline

Returns

the position within all supplied tensors of this input

get_is_relevant_to_shape()

bool ngraph::descriptor::Input::get_is_relevant_to_shape ( ) const

inline

Returns

true if the value of this input is relevant to the output shapes of the corresponding node. (Usually this is false.)

See Node::set_input_is_relevant_to_shape for more details.

get_is_relevant_to_value()

bool ngraph::descriptor::Input::get_is_relevant_to_value ( ) const

inline

Returns

true if the value of this input is relevant to the output value of the corresponding node. (Usually this is true.)

See Node::set_input_is_relevant_to_value for more details.

get_node()

std::shared_ptr<Node> ngraph::descriptor::Input::get_node

(

)

const

Returns

the node that this is an input of

get_output() [1/2]

Output& ngraph::descriptor::Input::get_output ( )

inline

Returns

the connected output

get_output() [2/2]

const Output& ngraph::descriptor::Input::get_output ( ) const

inline

Returns

the connected output

get_partial_shape()

const PartialShape& ngraph::descriptor::Input::get_partial_shape

(

)

const

Returns

the partial shape of the connected output

get_raw_pointer_node()

Node* ngraph::descriptor::Input::get_raw_pointer_node ( ) const

inline

Returns

the raw pointer to the node that this is an input of

get_shape()

const Shape& ngraph::descriptor::Input::get_shape

(

)

const

Returns

the shape of the connected output

get_tensor() [1/2]

Tensor& ngraph::descriptor::Input::get_tensor

(

)

Returns

the tensor of the connected output

get_tensor() [2/2]

const Tensor& ngraph::descriptor::Input::get_tensor

(

)

const

Returns

the tensor of the connected output

get_tensor_ptr() [1/2]

std::shared_ptr<Tensor> ngraph::descriptor::Input::get_tensor_ptr ( )

protected

Returns

the tensor for the connected output

get_tensor_ptr() [2/2]

std::shared_ptr<const Tensor> ngraph::descriptor::Input::get_tensor_ptr ( ) const

protected

Returns

the tensor for the connected output

has_output()

bool ngraph::descriptor::Input::has_output ( ) const

inline

Returns

true if an output is connected to the input.

---

The documentation for this class was generated from the following file:

• core/include/ngraph/descriptor/input.hpp
