An internal API of synchronous inference request to be implemented by plugin, which is used in InferRequestBase forwarding mechanism. More...

#include <ie_iinfer_request_internal.hpp>

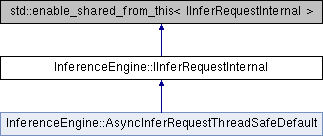

Inheritance diagram for InferenceEngine::IInferRequestInternal:

Public Types
using	Ptr = std::shared_ptr< IInferRequestInternal >
	A shared pointer to a IInferRequestInternal interface.

using	Callback = std::function< void(std::exception_ptr)>
	Alias for callback type.

Public Member Functions
	IInferRequestInternal (const InputsDataMap &networkInputs, const OutputsDataMap &networkOutputs)
	Constructs a new instance. More...

virtual void	Infer ()
	Infers specified input(s) in synchronous mode. More...

virtual void	InferImpl ()
	The minimal infer function to be implemented by plugins. It infers specified input(s) in synchronous mode. More...

virtual void	Cancel ()
	Cancel current inference request execution.

virtual std::map< std::string, InferenceEngineProfileInfo >	GetPerformanceCounts () const
	Queries performance measures per layer to get feedback of what is the most time consuming layer. Note: not all plugins may provide meaningful data. More...

virtual void	SetBlob (const std::string &name, const Blob::Ptr &data)
	Set input/output data to infer. More...

virtual Blob::Ptr	GetBlob (const std::string &name)
	Get input/output data to infer. More...

virtual void	SetBlob (const std::string &name, const Blob::Ptr &data, const PreProcessInfo &info)
	Sets pre-process for input data. More...

virtual const PreProcessInfo &	GetPreProcess (const std::string &name) const
	Gets pre-process for input data. More...

virtual void	SetBatch (int batch)
	Sets new batch size when dynamic batching is enabled in executable network that created this request. More...

virtual std::vector< std::shared_ptr< IVariableStateInternal > >	QueryState ()
	Queries memory states. More...

virtual void	StartAsync ()
	Start inference of specified input(s) in asynchronous mode. More...

virtual void	StartAsyncImpl ()
	The minimal asynchronous inference function to be implemented by plugins. It starts inference of specified input(s) in asynchronous mode. More...

virtual StatusCode	Wait (int64_t millis_timeout)
	Waits for the result to become available. Blocks until specified millis_timeout has elapsed or the result becomes available, whichever comes first. More...

virtual void	SetCallback (Callback callback)
	Set callback function which will be called on success or failure of asynchronous request. More...

void	checkBlob (const Blob::Ptr &blob, const std::string &name, bool isInput, const SizeVector &refDims={}) const
	Check that `blob` is valid. Throws an exception if it's not. More...

virtual void	checkBlobs ()
	Check that all of the blobs is valid. Throws an exception if it's not.

void	setPointerToExecutableNetworkInternal (const std::shared_ptr< IExecutableNetworkInternal > &exeNetwork)
	Sets the pointer to executable network internal. More...

The method will be removed void *	GetUserData () noexcept
	Gets the pointer to userData. More...

The method will be removed void	SetUserData (void *userData) noexcept
	Sets the pointer to userData. More...

Protected Member Functions
	~IInferRequestInternal ()
	Destroys the object.

void	execDataPreprocessing (InferenceEngine::BlobMap &preprocessedBlobs, bool serial=false)
	Checks and executes input data pre-processing if needed. More...

bool	findInputAndOutputBlobByName (const std::string &name, InputInfo::Ptr &foundInput, DataPtr &foundOutput) const
	Helper function to find input or output blob by name. More...

bool	preProcessingRequired (const InputInfo::Ptr &info, const Blob::Ptr &userBlob, const Blob::Ptr &deviceBlob=nullptr)
	Checks whether pre-processing step is required for a given input. More...

void	addInputPreProcessingFor (const std::string &name, Blob::Ptr const &from, const Blob::Ptr &to)

Protected Attributes
InferenceEngine::InputsDataMap	_networkInputs
	Holds information about network inputs info.

InferenceEngine::OutputsDataMap	_networkOutputs
	Holds information about network outputs data.

InferenceEngine::BlobMap	_inputs
	A map of user passed blobs for network inputs.

InferenceEngine::BlobMap	_deviceInputs
	A map of actual network inputs, in plugin specific format.

InferenceEngine::BlobMap	_outputs
	A map of user passed blobs for network outputs.

std::map< std::string, PreProcessDataPtr >	_preProcData
	A map of pre-process data per input.

int	m_curBatch = -1
	Current batch value used in dynamic batching.

std::shared_ptr< IExecutableNetworkInternal >	_exeNetwork
	A shared pointer to IInferRequestInternal. More...

Callback	_callback
	A callback.

Detailed Description

An internal API of synchronous inference request to be implemented by plugin, which is used in InferRequestBase forwarding mechanism.

Constructor & Destructor Documentation

◆ IInferRequestInternal()

InferenceEngine::IInferRequestInternal::IInferRequestInternal	(	const InputsDataMap &	networkInputs,
		const OutputsDataMap &	networkOutputs
	)

Constructs a new instance.

Parameters

[in]	networkInputs	The network inputs info
[in]	networkOutputs	The network outputs data

Member Function Documentation

◆ checkBlob()

void InferenceEngine::IInferRequestInternal::checkBlob	(	const Blob::Ptr &	blob,
		const std::string &	name,
		bool	isInput,
		const SizeVector &	refDims = `{}`
	)		const

Check that blob is valid. Throws an exception if it's not.

Parameters

[in]	blob	The blob to check
[in]	name	The name of input or output depending of if the `blob` is input or output
[in]	isInput	Indicates if `is` input
[in]	refDims	The reference dims, empty if not specified

◆ execDataPreprocessing()

void InferenceEngine::IInferRequestInternal::execDataPreprocessing	(	InferenceEngine::BlobMap &	preprocessedBlobs,
		bool	serial = `false`
	)

protected

Checks and executes input data pre-processing if needed.

Parameters

inputs	Inputs blobs to perform preprocessing on
serial	Whether to use multiple threads to execute the step

◆ findInputAndOutputBlobByName()

bool InferenceEngine::IInferRequestInternal::findInputAndOutputBlobByName	(	const std::string &	name,
		InputInfo::Ptr &	foundInput,
		DataPtr &	foundOutput
	)		const

protected

Helper function to find input or output blob by name.

Parameters

name	A name of input or output blob.
foundInput	A pointer to input information if found.
foundOutput	A pointer to output DataPtr if found.

Returns: True - if loaded network has input with provided name, false - if loaded network has output with provided name

Exceptions

[not_found] exception if there is no input and output layers with given name

◆ GetBlob()

virtual Blob::Ptr InferenceEngine::IInferRequestInternal::GetBlob ( const std::string & name )

virtual

Get input/output data to infer.

Note: Memory allocation doesn't happen

Parameters

name	- a name of input or output blob.
data	- a reference to input or output blob. The type of Blob must correspond to the network input precision and size.

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ GetPerformanceCounts()

virtual std::map<std::string, InferenceEngineProfileInfo> InferenceEngine::IInferRequestInternal::GetPerformanceCounts ( ) const

virtual

Queries performance measures per layer to get feedback of what is the most time consuming layer. Note: not all plugins may provide meaningful data.

Returns: - a map of layer names to profiling information for that layer.

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ GetPreProcess()

virtual const PreProcessInfo& InferenceEngine::IInferRequestInternal::GetPreProcess ( const std::string & name ) const

virtual

Gets pre-process for input data.

Parameters

name	Name of input blob.
info	pointer to a pointer to PreProcessInfo structure

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ GetUserData()

The method will be removed void* InferenceEngine::IInferRequestInternal::GetUserData ( )

noexcept

Gets the pointer to userData.

Returns: Pointer to user data

◆ Infer()

virtual void InferenceEngine::IInferRequestInternal::Infer ( )

virtual

Infers specified input(s) in synchronous mode.

Note: blocks all method of InferRequest while request is ongoing (running or waiting in queue)

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ InferImpl()

virtual void InferenceEngine::IInferRequestInternal::InferImpl ( )

virtual

The minimal infer function to be implemented by plugins. It infers specified input(s) in synchronous mode.

Note

This method is used in IInferRequestInternal::Infer, which calls the common code first and after uses this plugin dependent implementation.
Blocks all method of InferRequest while request is ongoing (running or waiting in queue)

◆ preProcessingRequired()

bool InferenceEngine::IInferRequestInternal::preProcessingRequired	(	const InputInfo::Ptr &	info,
		const Blob::Ptr &	userBlob,
		const Blob::Ptr &	deviceBlob = `nullptr`
	)

protected

Checks whether pre-processing step is required for a given input.

Parameters

info	InputInfo corresponding to input blob
userBlob	Input Blob object corresponding to input info
deviceBlob	Blob object in plugin's desired format

Returns: True if pre-processing is required, false otherwise

◆ QueryState()

virtual std::vector<std::shared_ptr<IVariableStateInternal> > InferenceEngine::IInferRequestInternal::QueryState ( )

virtual

Queries memory states.

Returns: Returns memory states

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ SetBatch()

virtual void InferenceEngine::IInferRequestInternal::SetBatch ( int batch )

virtual

Sets new batch size when dynamic batching is enabled in executable network that created this request.

Parameters

batch - new batch size to be used by all the following inference calls for this request.

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ SetBlob() [1/2]

virtual void InferenceEngine::IInferRequestInternal::SetBlob	(	const std::string &	name,
		const Blob::Ptr &	data
	)

virtual

Set input/output data to infer.

Note: Memory allocation doesn't happen

Parameters

name	- a name of input or output blob.
data	- a reference to input or output blob. The type of Blob must correspond to the network input precision and size.

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ SetBlob() [2/2]

virtual void InferenceEngine::IInferRequestInternal::SetBlob	(	const std::string &	name,
		const Blob::Ptr &	data,
		const PreProcessInfo &	info
	)

virtual

Sets pre-process for input data.

Parameters

name	Name of input blob.
data	- a reference to input or output blob. The type of Blob must correspond to the network input precision and size.
info	Preprocess info for blob.

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ SetCallback()

virtual void InferenceEngine::IInferRequestInternal::SetCallback ( Callback callback )

virtual

Set callback function which will be called on success or failure of asynchronous request.

Parameters

callback - function to be called with the following description:

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ setPointerToExecutableNetworkInternal()

void InferenceEngine::IInferRequestInternal::setPointerToExecutableNetworkInternal ( const std::shared_ptr< IExecutableNetworkInternal > & exeNetwork )

Sets the pointer to executable network internal.

Note: Needed to correctly handle ownership between objects.

Parameters

[in] exeNetwork The executable network

◆ SetUserData()

The method will be removed void InferenceEngine::IInferRequestInternal::SetUserData ( void * userData )

noexcept

Sets the pointer to userData.

Parameters

[in] Pointer to user data

◆ StartAsync()

virtual void InferenceEngine::IInferRequestInternal::StartAsync ( )

virtual

Start inference of specified input(s) in asynchronous mode.

Note: The method returns immediately. Inference starts also immediately.

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

◆ StartAsyncImpl()

virtual void InferenceEngine::IInferRequestInternal::StartAsyncImpl ( )

virtual

The minimal asynchronous inference function to be implemented by plugins. It starts inference of specified input(s) in asynchronous mode.

Note

The methos is used in AsyncInferRequestInternal::StartAsync which performs common steps first and calls plugin dependent implementation of this method after.
It returns immediately. Inference starts also immediately.

◆ Wait()

virtual StatusCode InferenceEngine::IInferRequestInternal::Wait ( int64_t millis_timeout )

virtual

Waits for the result to become available. Blocks until specified millis_timeout has elapsed or the result becomes available, whichever comes first.

Parameters

millis_timeout - maximum duration in milliseconds to block for

Note

There are special cases when millis_timeout is equal some value of WaitMode enum:

STATUS_ONLY - immediately returns request status (InferRequest::StatusCode). It doesn't block or interrupt current thread.
RESULT_READY - waits until inference result becomes available

Returns: A status code

Implemented in InferenceEngine::AsyncInferRequestThreadSafeDefault.

Field Documentation

◆ _exeNetwork

std::shared_ptr<IExecutableNetworkInternal> InferenceEngine::IInferRequestInternal::_exeNetwork

protected

A shared pointer to IInferRequestInternal.

Note: Needed to correctly handle ownership between objects.

The documentation for this interface was generated from the following file:

cpp_interfaces/interface/ie_iinfer_request_internal.hpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ IInferRequestInternal()

Member Function Documentation

◆ checkBlob()

◆ execDataPreprocessing()

◆ findInputAndOutputBlobByName()

◆ GetBlob()

◆ GetPerformanceCounts()

◆ GetPreProcess()

◆ GetUserData()

◆ Infer()

◆ InferImpl()

◆ preProcessingRequired()

◆ QueryState()

◆ SetBatch()

◆ SetBlob() [1/2]

◆ SetBlob() [2/2]

◆ SetCallback()

◆ setPointerToExecutableNetworkInternal()

◆ SetUserData()

◆ StartAsync()

◆ StartAsyncImpl()

◆ Wait()

Field Documentation

◆ _exeNetwork
